Transformer Working Principles and Engineering Specifications

2026-08-19 18:27:31

Transformer Working Principles, Failure Mechanisms, and Engineering Specifications

In power transmission and distribution systems, a Transformer prevents voltage mismatch failures that can cause excessive losses, equipment overheating, and unstable electrical networks. When we examine failure reports from substations, industrial facilities, and renewable energy installations, the engineering questions are consistent: how does a Transformer transfer electrical energy efficiently, which mechanisms create failures, and which specifications determine long-term reliability?

1 How Transformer Works — Core Operating Principles

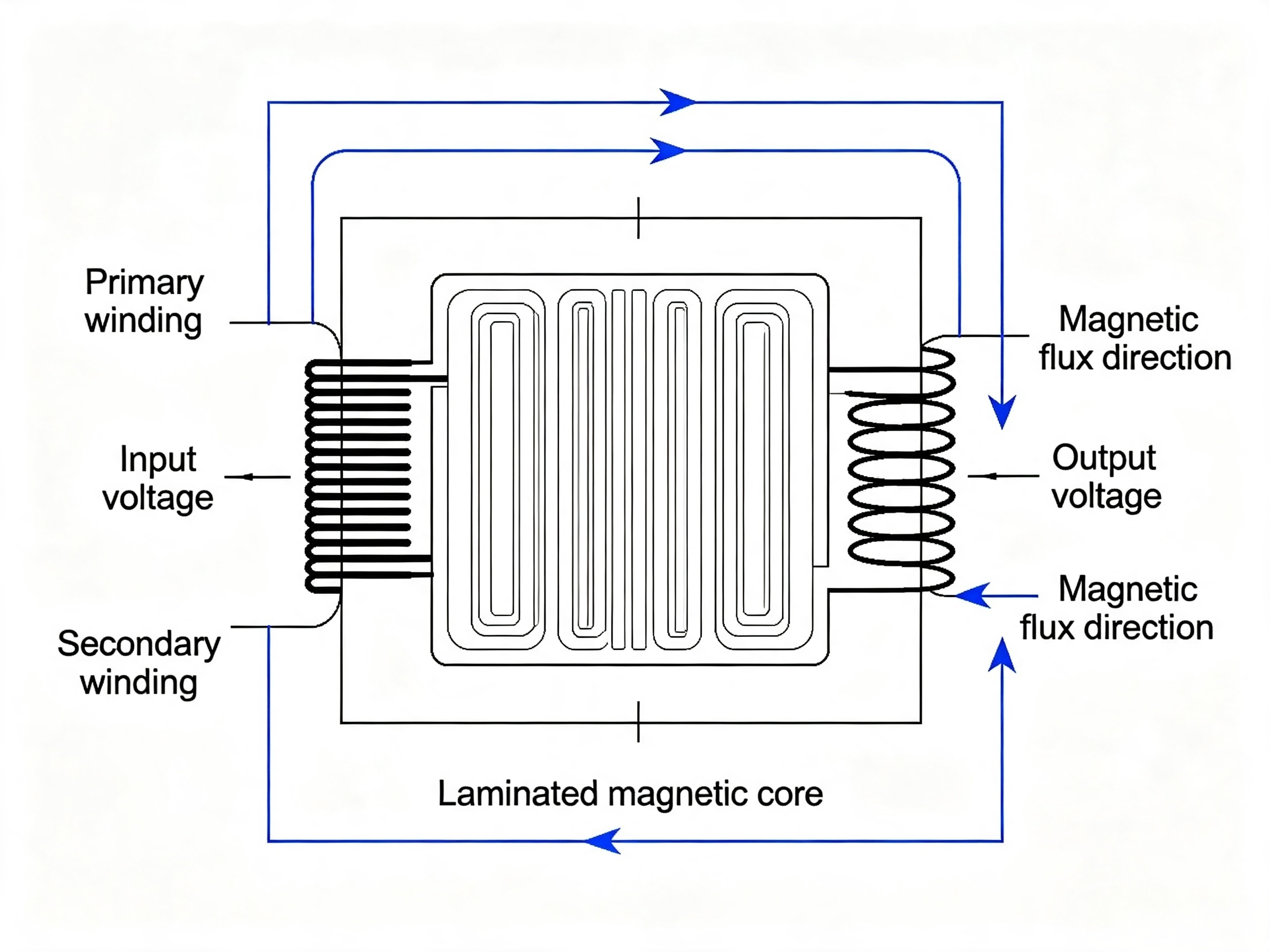

A Transformer operates through electromagnetic induction, transferring electrical energy between circuits through a magnetic field without direct electrical connection between primary and secondary windings. The fundamental operating principle depends on controlled magnetic flux generation inside the core, precise winding arrangement, insulation coordination, and thermal management.

When alternating current flows through the primary winding, it produces a changing magnetic flux inside the transformer core. This alternating magnetic field links with the secondary winding and induces an electromotive force according to electromagnetic induction principles. The voltage transformation ratio is determined by the relationship between the number of turns in the primary and secondary windings.

In engineering applications, the transformer core is responsible for providing a low-reluctance magnetic path. The core material directly affects magnetic flux density, excitation current, no-load losses, acoustic noise, and overall efficiency.

Modern electrical transformers commonly use advanced magnetic materials including grain-oriented electrical steel (GOES), high permeability Hi-B steel, amorphous alloy materials, and nanocrystalline materials for specialized high-frequency applications.

When we analyze transformer efficiency performance, two major energy loss mechanisms must be considered: no-load loss and load loss.

• No-load loss: Generated mainly by core hysteresis loss and eddy current loss when voltage is applied but the transformer is not supplying external load.

• Load loss: Generated primarily by winding resistance losses and stray losses caused by leakage magnetic fields during operation.

The engineering objective is not simply increasing transformer capacity, but controlling electromagnetic, thermal, and mechanical stresses throughout the operating lifetime.

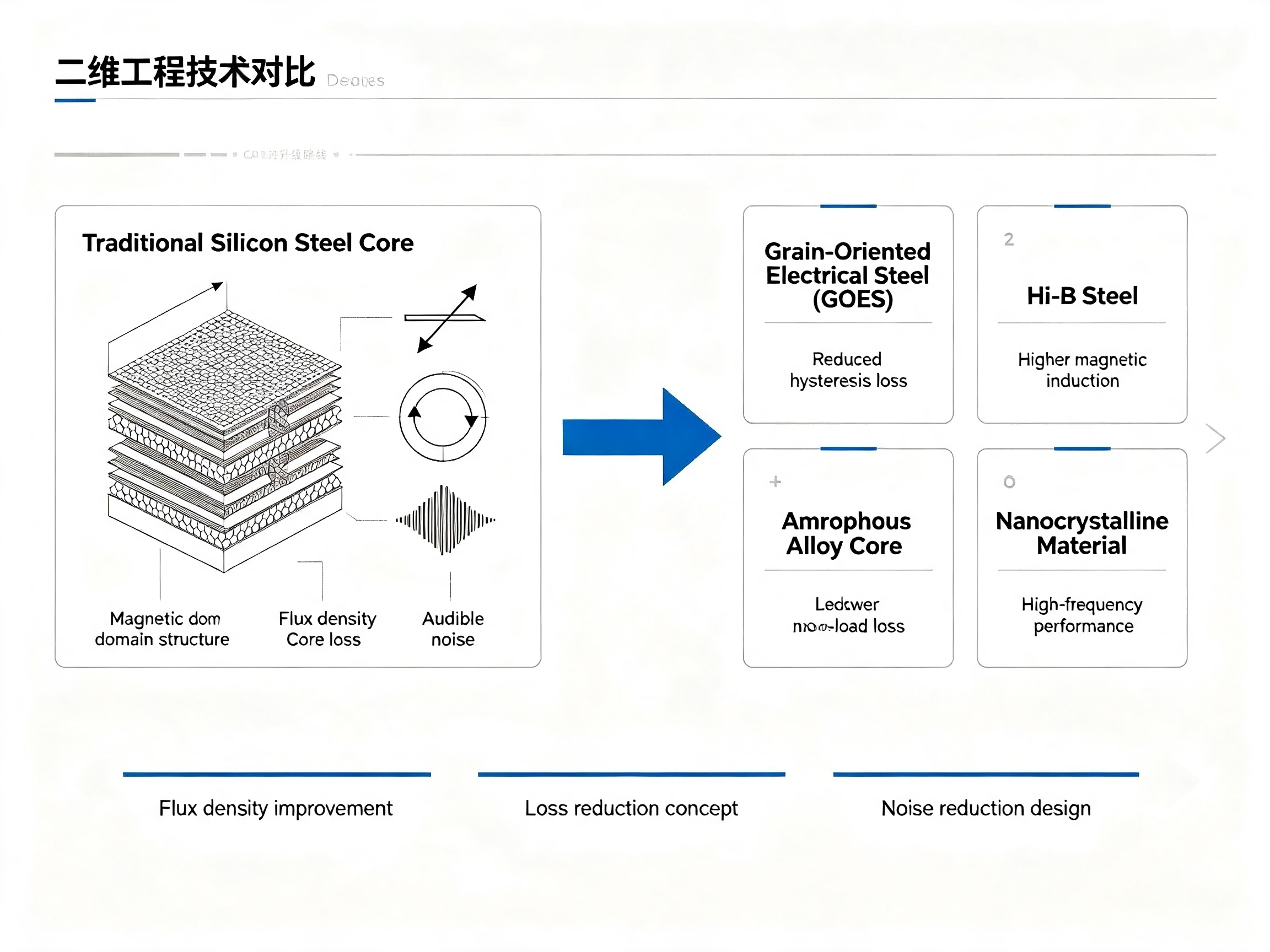

Magnetic Core Engineering and Material Selection

The transformer core is one of the most critical components influencing operating efficiency. Traditional electrical steel technology has developed from conventional grain-oriented silicon steel toward high magnetic induction materials and advanced amorphous alloys.

Grain-oriented electrical steel (GOES) improves magnetic domain alignment, reducing hysteresis losses during alternating magnetization cycles. High permeability Hi-B steel further improves magnetic characteristics by reducing excitation requirements and supporting higher efficiency transformer designs.

Amorphous alloy cores use a non-crystalline metallic structure that significantly reduces magnetic domain movement losses. This technology is widely considered for high-efficiency distribution transformers where reducing no-load consumption is a priority.

Nanocrystalline materials provide extremely high magnetic permeability and low core losses at high frequencies. They are commonly evaluated for power electronics transformers, high-frequency converters, and specialized energy systems.

When selecting core materials, engineers evaluate magnetic flux density, operating frequency, temperature rise, mechanical stability, and expected duty cycle rather than considering material cost alone.

Transformer Behavior Under Electrical and Mechanical Stress

During abnormal operating conditions, transformers experience electrical, thermal, and mechanical stresses simultaneously. Short-circuit currents can generate strong electromagnetic forces on windings, while excessive thermal loading accelerates insulation aging.

The transformer design must maintain winding mechanical strength, insulation integrity, and cooling capability during transient events.

Typical stress conditions include:

• Short-circuit electromagnetic forces causing winding deformation risks.

• High ambient temperature increasing insulation aging rate.

• Harmonic currents increasing additional losses and heating.

• Frequent load variations causing thermal expansion and contraction cycles.

Failure prevention requires coordinated electromagnetic design, material selection, manufacturing precision, and verification testing.

2 Key Components and Engineering Functions

A transformer consists of multiple engineered subsystems. Each component contributes to electrical performance, mechanical reliability, insulation protection, and thermal stability.

Verify all parameters against current test reports and applicable standards before use in specifications.

Core Material Failure Mechanisms

Core failures are usually related to excessive magnetic stress, insulation degradation between laminations, mechanical deformation, or unsuitable material selection.

If laminated steel insulation deteriorates, circulating eddy currents increase between laminations, producing additional heating. Excessive magnetic flux density can drive the core into saturation, increasing excitation current and creating abnormal thermal conditions.

Advanced core manufacturing requires precise lamination cutting, controlled stacking pressure, accurate joint design, and inspection procedures to maintain magnetic performance.

Winding Engineering and Mechanical Reliability

Windings must withstand continuous electrical loading as well as short-duration fault forces. During a short circuit, electromagnetic forces can compress, expand, or distort winding structures.

Engineers evaluate conductor arrangement, mechanical support structures, insulation spacing, and thermal pathways to prevent deformation and localized overheating.

Copper foil winding structures and continuously transposed conductors (CTC) are used in specific transformer designs to reduce circulating current losses and improve electromagnetic performance.

3 Performance Parameters and Testing Standards

Transformer performance evaluation requires analysis of electrical, thermal, mechanical, and insulation characteristics. In engineering specifications, parameters must be verified through documented testing procedures and applicable certification systems rather than evaluated only through nameplate information.

The key performance objective is maintaining stable voltage conversion while minimizing energy losses, controlling temperature rise, and ensuring insulation reliability throughout the expected operating period.

Verify all parameters against current test reports and applicable standards before use in specifications.

transformer loss optimization Engineering

Transformer efficiency is determined by controlling two fundamental loss categories: no-load loss and load loss. During engineering evaluation, both losses must be analyzed because they occur under different operating conditions.

No-load loss exists whenever the transformer is energized, regardless of whether electrical power is delivered to downstream equipment. The primary sources are magnetic hysteresis loss and eddy current loss inside the core.

Hysteresis loss occurs because magnetic domains inside the core material repeatedly change direction during alternating magnetic excitation. Materials with improved magnetic properties reduce the energy required for each magnetization cycle.

Eddy current loss is generated by circulating currents induced inside conductive core materials. Engineers reduce this effect through thinner laminations, improved insulation between layers, and advanced magnetic materials.

Core joint design is another important factor. Poorly controlled step-lap joints increase local magnetic flux concentration, producing additional losses and increasing acoustic noise.

Modern transformer designs optimize:

• Core material selection using high-performance grain-oriented electrical steel or amorphous alloys.

• Magnetic flux density control to prevent localized saturation.

• Improved core stacking accuracy to reduce air gaps.

• Optimized winding arrangement to minimize leakage flux.

Load losses occur when the transformer supplies current to connected equipment. These losses mainly originate from winding resistance and stray electromagnetic effects.

Copper conductor resistance generates I²R losses. Higher current loading produces greater heat generation, requiring careful conductor sizing and thermal pathway design.

Stray losses occur when leakage magnetic fields induce additional currents in structural components such as clamps, tanks, and supporting structures.

Engineering solutions include:

• Copper foil winding structures to reduce conductor losses in suitable transformer applications.

• Continuously transposed conductors (CTC) to reduce circulating current effects.

• Electromagnetic shielding structures to control stray flux concentration.

• Improved winding geometry to optimize leakage magnetic field distribution.

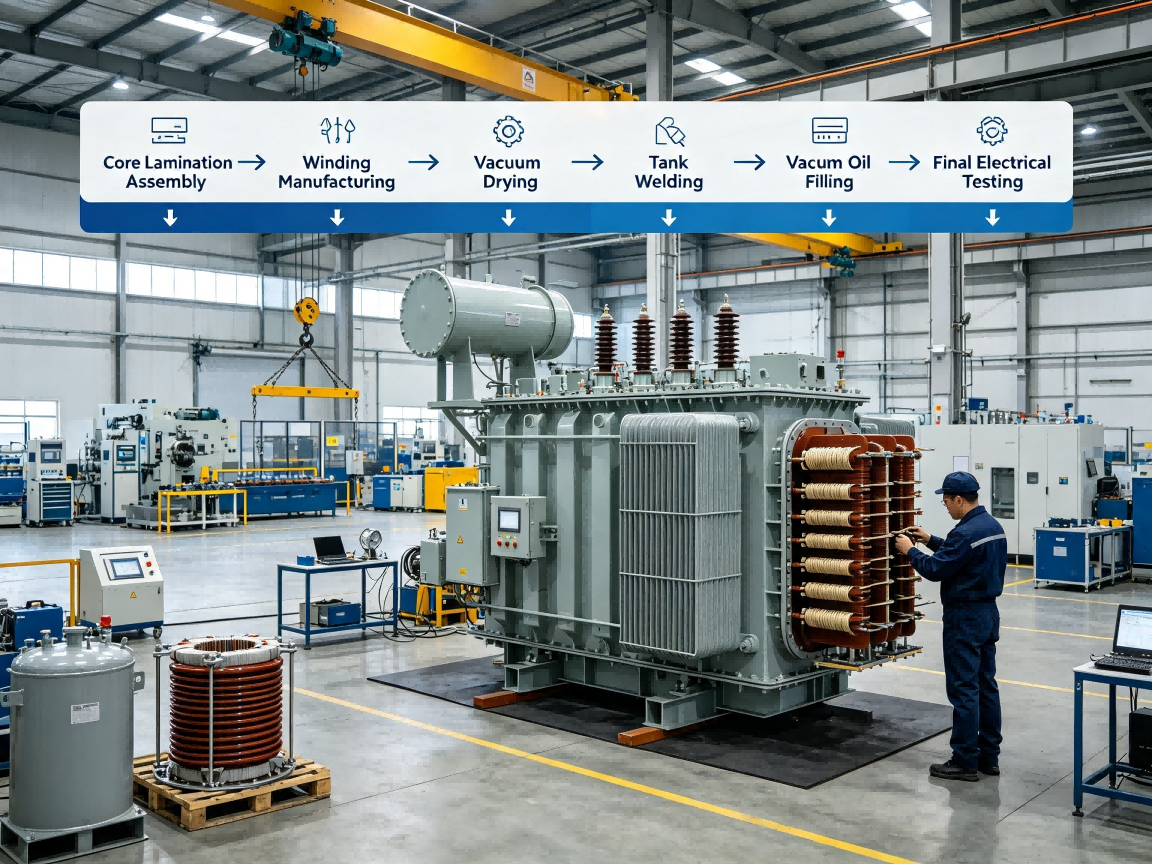

Large Capacity Transformer Manufacturing Process

Large power transformer manufacturing requires precise control of electromagnetic assembly, mechanical structure, insulation processing, and final verification.

The manufacturing sequence directly affects transformer reliability because defects introduced during assembly may remain hidden until long-term operation.

The critical production stages include:

Core Assembly

The core assembly process requires accurate lamination positioning, controlled stacking pressure, and precise joint alignment. Dimensional deviation can change magnetic flux distribution and increase localized heating.

Winding Manufacturing

Winding production requires control of conductor arrangement, insulation placement, mechanical compression, and dimensional accuracy. The winding structure must resist electromagnetic forces generated during short-circuit conditions.

Vacuum Drying Process

Moisture is one of the major factors affecting insulation aging. Vacuum drying removes moisture from solid insulation materials and improves dielectric performance.

Tank Fabrication and Welding

The transformer tank provides mechanical protection and containment. Welding quality directly affects structural strength and leakage prevention.

Vacuum Oil Filling

For oil-filled transformers, vacuum oil filling minimizes trapped air and improves insulation reliability. The process must control contamination, moisture, and gas content.

Final Testing

Final verification evaluates electrical performance, insulation condition, mechanical integrity, and manufacturing consistency before operation.

4 Protection Mechanisms and Engineering Logic

Transformer protection engineering is based on controlling electromagnetic stress, thermal stress, insulation degradation, and environmental influence. Each protection mechanism corresponds to a specific physical failure mechanism.

Advanced Transformer Core Material Technology

Core material development has become a major pathway for improving transformer efficiency. Traditional silicon steel designs have evolved toward higher magnetic performance materials to reduce energy consumption during continuous operation.

Grain-oriented electrical steel (GOES) provides controlled magnetic domain orientation, reducing hysteresis effects during alternating magnetization. High magnetic induction Hi-B steel improves magnetic flux performance and supports more efficient core designs.

Amorphous alloy cores reduce core losses by using a non-crystalline atomic structure. Because magnetic domain movement requires less energy, amorphous materials can significantly reduce no-load energy consumption in suitable distribution transformer applications.

Nanocrystalline materials provide extremely high permeability and low magnetic losses in high-frequency applications. They are increasingly considered for power electronic systems, renewable energy converters, and advanced energy management equipment.

Core material selection must consider operating frequency, load profile, temperature conditions, noise requirements, and lifetime energy consumption.

Transformer Insulation System Engineering

Insulation systems determine the electrical reliability and service life of transformers. Insulation failure usually develops gradually through thermal aging, moisture absorption, electrical discharge, and chemical degradation.

Thermal classification systems include Class A, Class B, Class F, and Class H insulation categories, representing different temperature endurance capabilities.

Oil-Immersed Transformers commonly use mineral oil insulation because of its established dielectric and cooling characteristics. However, natural ester insulation fluids are receiving increased attention because of environmental considerations and improved biodegradability characteristics.

Dry-type Transformers use insulation technologies including epoxy resin casting and vacuum pressure impregnation (VPI). These systems provide solid insulation structures suitable for applications requiring reduced fire risk and indoor installation.

Future insulation development focuses on environmentally responsible materials, improved thermal stability, and longer insulation lifetime prediction.

AI Data Center Transformer Engineering Requirements

AI data centers create new transformer design challenges because artificial intelligence computing infrastructure requires continuous high-density electrical power supply.

Unlike conventional commercial facilities, AI data centers operate with high load factors, strict uptime requirements, and rapidly changing expansion demands.

Transformer engineering requirements include:

• Ultra-low loss operation to reduce continuous energy consumption.

• High short-circuit withstand capability for critical infrastructure protection.

• Rapid capacity expansion compatibility.

• Integrated monitoring capability for predictive maintenance.

Typical configurations include medium-voltage systems such as 35kV/10kV transformers and 35kV/0.4kV dry-type transformers depending on distribution architecture.

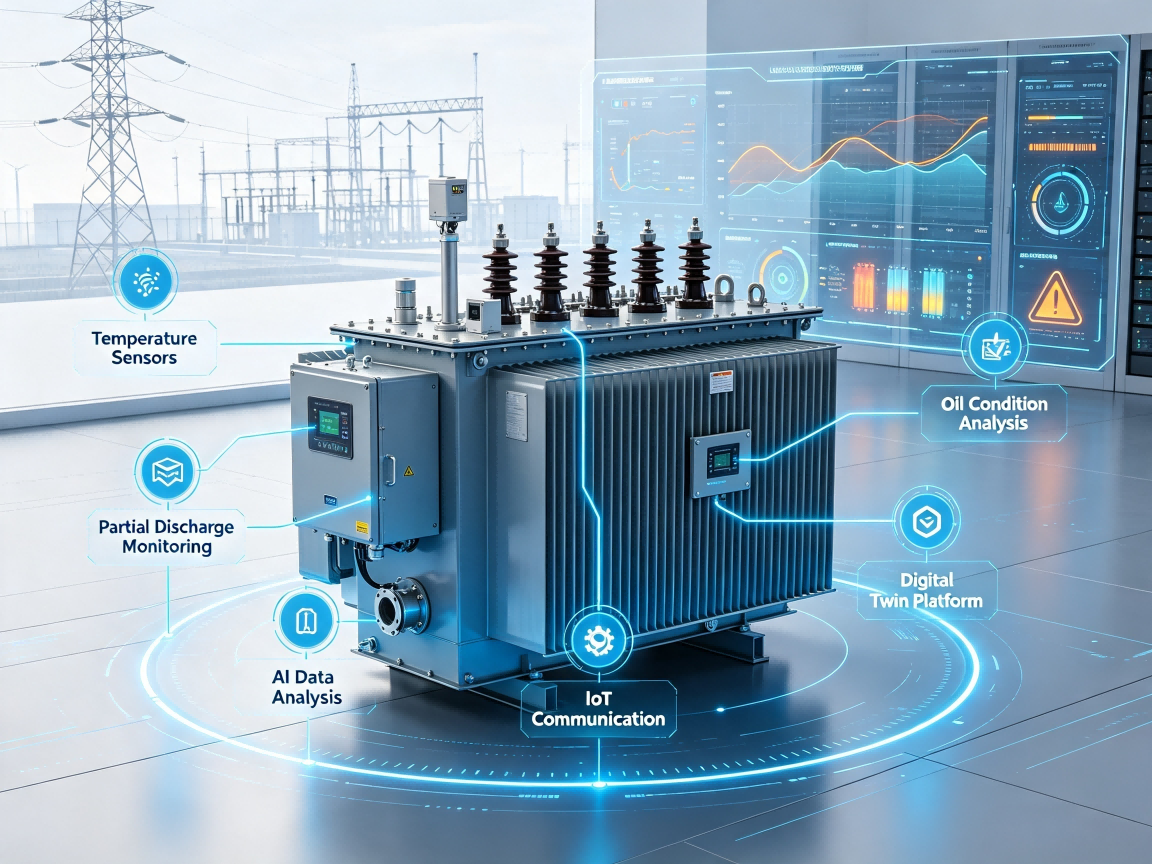

Smart Transformer Technology and Digital Monitoring

Smart transformers integrate traditional electrical conversion technology with sensing, communication, and analytical systems.

Modern monitoring systems may integrate temperature measurement, partial discharge detection, oil condition monitoring, and load analysis functions.

Through IoT communication combined with artificial intelligence analysis, operating conditions can be continuously evaluated.

The engineering objectives include:

• Predictive maintenance instead of reactive repair.

• Early detection of abnormal operating conditions.

• Improved asset management decisions.

• Extended equipment service lifetime.

Transformer Digital Twin Technology for Predictive Engineering

Digital twin technology creates a virtual representation of a physical transformer by combining electromagnetic models, thermal models, insulation aging models, and operational data analysis.

Traditional maintenance strategies often depend on fixed inspection schedules. Digital twin systems provide a different engineering approach by continuously comparing real operating conditions with predicted equipment behavior.

A transformer digital twin typically integrates:

• Electromagnetic models to analyze flux distribution, current loading, and loss generation.

• Thermal models to predict temperature distribution and cooling performance.

• Insulation aging models to estimate degradation trends.

• Operational data models to evaluate real-time equipment condition.

The engineering value of digital twins is the ability to estimate temperature rise, insulation aging speed, abnormal operating conditions, and remaining service life.

For large energy infrastructure, digital twin technology supports condition-based maintenance by identifying developing problems before they become critical failures.

Transformer Thermal Management Engineering

Heat management is one of the primary engineering challenges in transformer operation because all electrical losses eventually appear as thermal energy.

Excessive temperature accelerates insulation aging, reduces dielectric strength, and shortens transformer operating life. Therefore, cooling system design must match transformer capacity, loading profile, installation environment, and operating conditions.

Oil-filled transformer cooling methods include:

• ONAN: Oil Natural Air Natural cooling using natural oil circulation and natural air cooling.

• ONAF: Oil Natural Air Forced cooling using fans to improve heat dissipation.

• OFAF: Oil Forced Air Forced cooling using pumps and fans to increase cooling efficiency.

• ODWF: Oil Directed Water Forced cooling for applications requiring high heat removal capability.

Cooling optimization requires analysis of oil flow paths, radiator arrangement, winding hot spots, ambient temperature variation, and load cycles.

Advanced thermal design reduces localized overheating and improves transformer reliability under continuous operation.

5 Common Engineering Failures and Root Cause Analysis

Transformer failures are rarely caused by a single component defect. Most failures develop through interaction between electrical stress, thermal stress, mechanical forces, and material degradation.

Verify all parameters against current test reports and applicable standards before use in specifications.

6 Engineering Specification Checklist

The following checklist can be directly applied during transformer engineering evaluation and specification preparation.

Electrical Requirements

• Voltage transformation requirements and system compatibility.

• Transformer capacity selection based on actual load profile.

• Loss optimization requirements including no-load and load losses.

• Short-circuit withstand capability evaluation.

• Insulation system verification and electrical safety assessment.

• Compliance with applicable certified quality management procedures.

Physical and Mechanical Requirements

• Core structure design and magnetic material selection.

• Winding mechanical strength under short-circuit electromagnetic forces.

• Tank structural integrity and leakage prevention.

• Transportation and installation mechanical considerations.

• Assembly precision and manufacturing consistency.

Thermal Management Requirements

• Cooling method selection including ONAN, ONAF, OFAF, or ODWF configurations where applicable.

• Temperature rise control under rated operating conditions.

• Hot spot temperature evaluation.

• Heat dissipation capability under continuous loading.

• Environmental temperature consideration.

Environmental Requirements

• Environmental management process verification according to ISO14001 Environmental Management System Certificate No. 39326E00292R001 issued by IAF/CNAS.

• Selection of suitable insulation materials according to installation environment.

• Evaluation of noise requirements for sensitive locations.

• Consideration of renewable energy, industrial, transportation, and infrastructure applications.

Certification Requirements

• Quality management verification according to ISO9001 Quality Management System Certificate No. 39326Q00290R001 issued by IAF/CNAS.

• Occupational health and safety management verification according to ISO45001 Occupational Health and Safety Management System Certificate No. 39326S00279R001 issued by IAF/CNAS.

• Energy management verification according to ISO50001 Energy Management System Certificate No. 04326En00170R001 issued by IAF/CNAS.

Share your project parameters for a technical review.

7 Evaluating Manufacturer Engineering Capability

When evaluating a Transformer Manufacturer, engineers should examine quality management systems, production process control, testing capability, engineering design experience, and consistency of delivered equipment. Jihui Electric Group Co., Ltd operates with ISO9001 Quality Management System Certificate No. 39326Q00290R001 issued by IAF/CNAS, ISO14001 Environmental Management System Certificate No. 39326E00292R001 issued by IAF/CNAS, ISO45001 Occupational Health and Safety Management System Certificate No. 39326S00279R001 issued by IAF/CNAS, and ISO50001 Energy Management System Certificate No. 04326En00170R001 issued by IAF/CNAS.

Manufacturer evaluation should focus on engineering documentation, verification procedures, manufacturing control, material traceability, and the ability to support customized transformer designs for different electrical systems.

Frequently Asked Questions

How does transformer core material influence energy efficiency?

Core material determines magnetic performance, excitation requirements, and no-load losses.

Advanced materials such as grain-oriented electrical steel, Hi-B steel, amorphous alloys, and nanocrystalline materials reduce magnetic losses through improved magnetic characteristics.

What causes transformer insulation failure during long-term operation?

Insulation failure is mainly caused by thermal aging, moisture contamination, electrical discharge, and chemical degradation.

Engineering prevention requires proper insulation system selection, moisture control, thermal management, and condition monitoring procedures.

How are transformer losses reduced in high-efficiency designs?

Transformer losses are reduced by optimizing core materials, magnetic flux distribution, winding structures, and electromagnetic shielding design.

No-load losses are controlled through core improvements, while load losses are reduced through conductor and leakage field optimization.

Why are smart transformers important for modern power systems?

Smart transformers provide operational visibility through integrated sensing, communication, and analytical technologies.

They support predictive maintenance by identifying abnormal temperature, insulation condition, and loading behavior before failures occur.

What engineering factors determine Transformer Cooling System selection?

Cooling selection depends on transformer capacity, loading profile, heat generation, installation environment, and reliability requirements.

Engineers evaluate oil circulation methods, airflow conditions, hot spot temperature, and thermal performance during design verification.
